Sodium Hypochlorite Generators
Equipment inquiries for sodium hypochlorite generation and related project supply.
Application & product range
For water treatment projects considering sodium hypochlorite generation equipment. Selection requires project conditions and a confirmed technical specification.
Product series

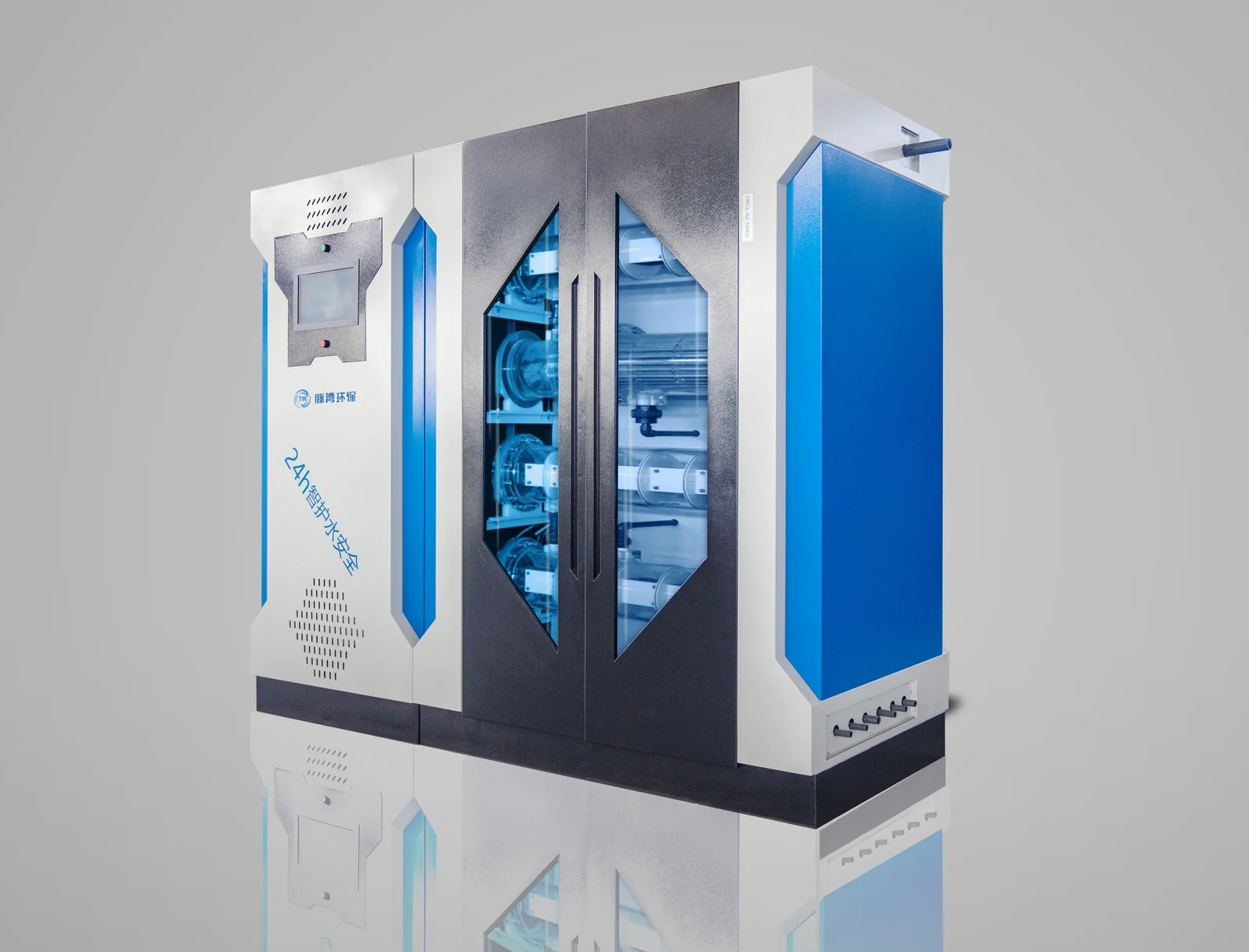

- Cabinet-type equipment, with catalogue sizes from 50 to 500 g/h available chlorine
- Larger electrolysis assemblies, with catalogue sizes from 1,000 to 50,000 g/h available chlorine
Product views
Configuration & specifications

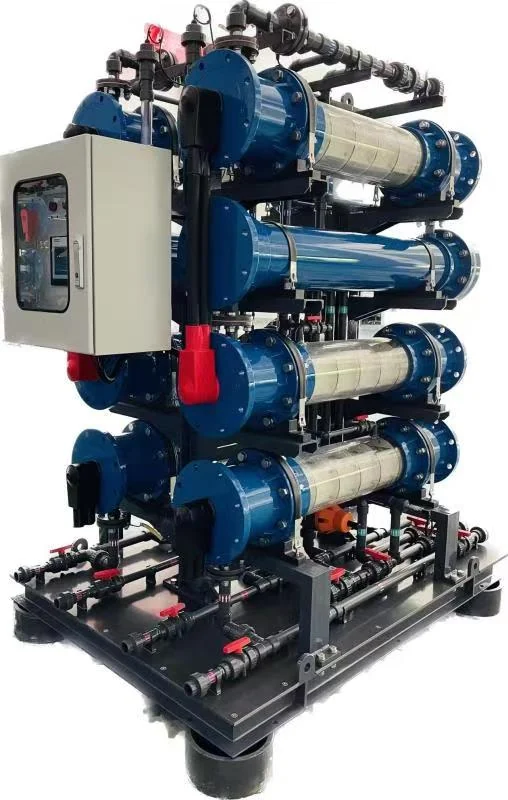

- The supplied catalogue shows cabinet and modular electrolysis arrangements
- Salt preparation, storage, dosing and site interfaces require a defined project scope
| Parameter | Catalogue reference |
|---|---|
| Catalogue output range | 50–50,000 g/h available chlorine across the listed sizes |
| Solution concentration listed | 6,000–9,000 ppm (0.6–0.9%) |
| Brine concentration listed | 3% dilute brine; feed-water conditions require project review |
| Reference size | 200 g/h catalogue row |
| AC power listed for 200 g/h | 1.2 kW |
| Water use listed for 200 g/h | 0.6 m³/day |
| Salt use listed for 200 g/h | 16.8 kg/day |
| Dimensions listed for 200 g/h | 1,225 × 700 × 2,015 mm |
Selected catalogue sizes
Catalogue reference values. Confirm the selected model and configuration before ordering.
| Available chlorine (g/h) | AC power (kW) | Water (m³/day) | Salt (kg/day) | Dimensions (mm) |
|---|---|---|---|---|
| 50 | 0.3 | 0.15 | 4.2 | 1,225 × 700 × 2,015 |
| 200 | 1.2 | 0.6 | 16.8 | 1,225 × 700 × 2,015 |
| 500 | 3.0 | 1.5 | 42 | 1,225 × 700 × 2,015 |
| 1,000 | 4.7 | 3 | 84 | 1,225 × 700 × 2,015 |
| 2,000 | 9.4 | 6 | 168 | 2,650 × 1,000 × 1,930 |
| 5,000 | 23.5 | 15 | 420 | 2,650 × 1,000 × 1,930 |
Source: KUOSI sodium hypochlorite catalogue, printed pages 06–07 (PDF pages 8–9). Values are catalogue references, subject to model and project confirmation.
Supply & customization scope
Supply scope
- Sodium hypochlorite generation equipment for an agreed output and application.
- Generator, feed-water equipment, storage, dosing and controls are itemized in the project quotation; the package scope varies by project.
Final scope, configuration and responsibilities are confirmed for the specific requirement.
To begin product selection
- Application and required treatment duty
- Available feed water information
- Site utilities and installation conditions
- Required equipment boundaries and delivery schedule
Product literature
Request product documentation
Please include the documents you need in your inquiry.
