Level Instruments
Level product customization based on an agreed application and product scope.
Application & product range
Ultrasonic level measurement for tanks and process applications. Select the measuring range, installation arrangement and signal interface for the application.
Product series
- AK2000E ultrasonic level transmitter (catalogue reference)
- Other level products are selected against the required application and scope

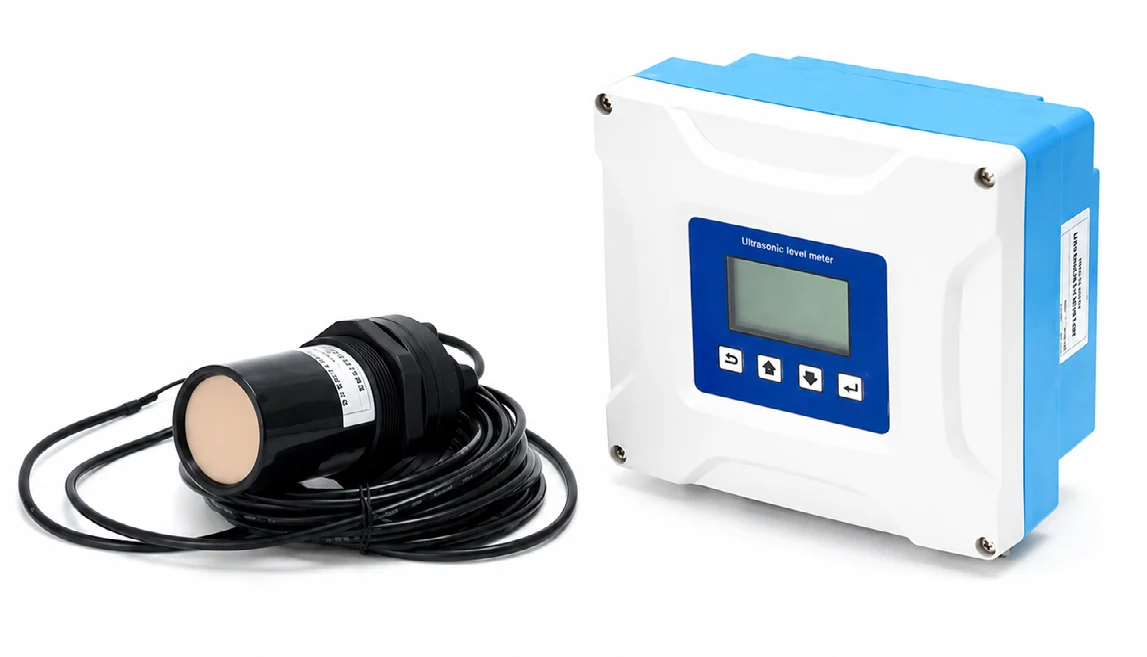

Product views
Configuration & specifications
- Listed measurement range options: 4 m, 7 m, 10 m, 15 m or 20 m
- Listed supply options: 12–24 VDC or 220 VAC
| Parameter | Catalogue reference |
|---|---|
| Reference model | AK2000E |
| Measurement range options | 0–4 m / 0–7 m / 0–10 m / 0–15 m / 0–20 m |
| Blind zone | 0.35–0.6 m, as listed in the catalogue |
| Resolution | 1 mm |
| Signal output | 4–20 mA, RS485 Modbus RTU |
| Power supply | 12–24 VDC or 220 VAC |
| Operating temperature | −20 to +60 °C |
Source: APURE water quality instrument catalogue, printed pages 81–82 (PDF page 46).
Supply & customization scope
Supply scope
- Level instrument selection and supply for an agreed application.
- The quotation identifies the instrument, installation arrangement and any separately supplied accessories.
Final scope, configuration and responsibilities are confirmed for the specific requirement.
To begin product selection
- Required level measurement or control function
- Vessel and installation information
- Process medium and operating conditions
- Reference product, quantity and schedule
