Dosing Systems
Customized dosing equipment developed around a clearly agreed project supply scope.
Application & product range
For water treatment projects requiring a coordinated chemical dosing equipment package. Start by defining the process conditions, equipment interfaces and supply boundaries.
Product series
- Circulating water dosing systems
- Acid–alkali adjustment dosing systems
- Phosphate, swimming pool and PAM dosing systems

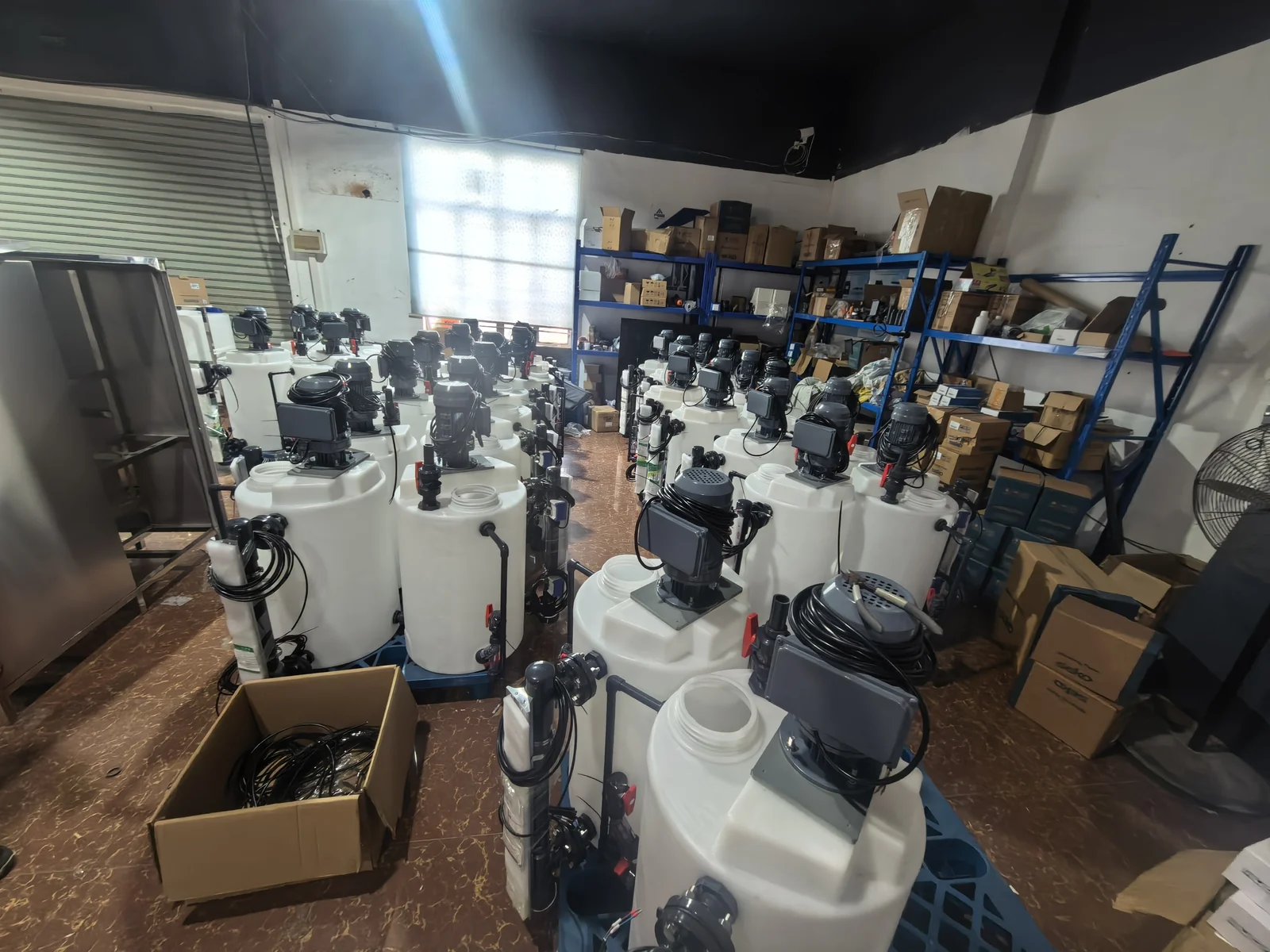

Product views
Configuration & specifications
- Dosing tanks, metering pumps, process instruments and control equipment selected against the application.
- Reference configurations below come from the circulating-water section of the supplied KUOSI catalogue.
| Parameter | Catalogue reference |
|---|---|
| Reference configuration | Circulating water dosing system |
| Tank sizes listed | 200 / 500 / 1,000 / 2,000 L |
| Dosing pump flow rates listed | 6 / 15 / 32 / 60 L/h across the reference configurations |
| Process measurements listed | pH and conductivity; ORP, turbidity and corrosion-rate measurement are listed as options |
Circulating-water reference configurations
Catalogue reference values. Confirm the selected model and configuration before ordering.
| Tank (L) | Pump flow (L/h) | Listed power (W) | Reference dimensions L × W × H (mm) |
|---|---|---|---|
| 200 | 6 | 160 | 1,300 × 1,000 × 1,700 |
| 500 | 15 | 200 | 1,700 × 1,200 × 1,700 |
| 1,000 | 32 | 240 | Application-specific |
| 2,000 | 60 | 280 | Application-specific |
Source: KUOSI dosing system catalogue, printed pages 8–9 (PDF page 6). Reference configurations are not a substitute for application-specific selection.
Supply & customization scope
Supply scope
- Customized dosing equipment and control-box supply.
- Tanks, pumps, instruments, piping and control requirements are agreed as an itemized project scope.
Final scope, configuration and responsibilities are confirmed for the specific requirement.
To begin product selection
- Chemical and process conditions
- Required dosing duty and operating schedule
- Site layout and utility information
- Control requirements and equipment interfaces
- Equipment list and scope boundaries
Product literature
Request product documentation
Please include the documents you need in your inquiry.
